Box culvert design (earthquake-proof sewage system) Ver.12
Seismic design calculation and drawing creation program based on the guidance of
"Sewage facility", "Soil improvement facility", and "Water facility"
●Price

●Release date
JPY306,000
L2 non-linear analysis option: JPY70,000
June 4, 2018

 Revisions in Ver.12
Functions below are added to Ver.12.
  • Correspondence to "Land Improvement Projects Design Standard and Operation [Water work] design March 2014"
  • Open ditch by the seismic method
 "Land Improvement Facility Seismic Design Guidance March 2004"
This program has supported "Land Improvement Facility Seismic Design Guidance March 2004", and it now supports "Land Improvement Projects Design Standard and Operation [Water work] design March 2014".

Applied standard
Fig.1 Applied standard select in the "initial input" screen

About "Land Improvement canal work 2014", the following switches has been added. (initial values are displayed in red)

Treatment of top slab weight material thickness x γc / width weight divided by axis length
Treatment of side wall weight without haunch / with haunch (divided by axis height) /
with haunch (divided by inner space height)
How to treat buoyancy computed by BOX width loads buoyancy divided by width /
loads buoyancy divided by axis length
Side pressure by vertical live load considered / ignored
Load case with both of vertical live load and horizontal live load created / not created

About inner water pressure, static water pressure by filled water and by pressure water can be loaded concurrently. The concurrent loading is available when inside water is full.

Static water pressure
Fig. 2 Static water pressure by filled water (left) and by pressure water (right)

In reference to live load positions of double box, stylized (vertical) live loads of double or triple box culvert is available. Selected live loads will be added automatically.

In addition, a design horizontal seismic intensity used for calculating inertia of seismic load is automatically rounded to two decimal places. An acceptable value according to a standard is also computed automatically.

 Open ditch by seismic coefficient method
Open ditches were supported by the seismic response method, and it is now supported by the seismic coefficient method.

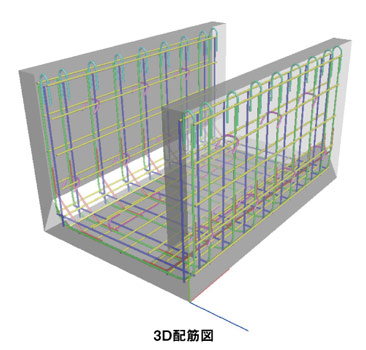

3D bar arrangement
Fig.3 3D bar arrangement figure and
bending moment figure of open ditch
M figure (normal)
and M figure (seismic)

As for soil pressure loading of seismic case, static soil pressure and ground displacement frequency loading are given for the seismic deformation method, but only soil pressure based on Coulomb's earth pressure formula is loaded for the seismic coefficient method. Inertial force is also loaded as seismic load.

Fig.4 Coulomb's earth pressure formula

For the section check with the seismic deformation method, the allowable stress method is used for normal time and level 1 earthquake, and the critical state method is used for level 2 earthquake. With the seismic coefficient method, all conditions are checked with the allowable stress method. The allowable value is same in level 1 and 2 earthquake.
