Supercomputer on cloud:
Noise measurement simulation service (Option)

UC-win/Road Noise supercomputer analysis and simlation service additional option

Price: Ask quatation  Release:September 20, 2011 Cloud services

Design Festival 2011-3Days
November 15, 2011:VRcon.forum8.jp
November 16 and 17: Shinagawa front building
Day3 "Overview of supercomputer on cloud services"
November 17, 2011 11:15-12:00 Meeting room A CPD Certificate


Introduction
The noise measurement simulation service provides the noise measurement of the construction work and traffic in a variety of site (arbitrary measurement) and the result with the option which can be selected in addition to "Supercomputer noise analysis simulatioin service" (please see Up&Comoing Vol.93). This service is very useful for checking, comparing, and studying the measurement result by using the actual measurement result as well as the visualized noise analysis simulation result.
The figure 1 shows the flow of the noise measurement simulation service.

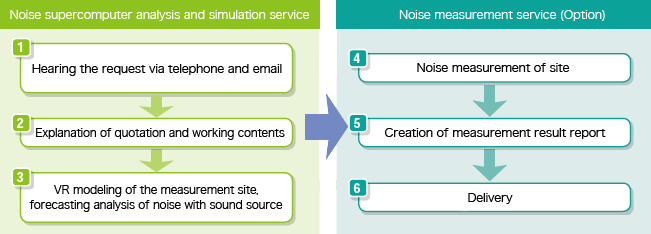

Figure 1 Flow of the noise measurement simulation service
Figure 2 Road noise
analysis
Figure 3 Construction
noise analysis
Figure 4 VR modeling of the measurement area
(Shibuya model)
Detailed information of the service
Noise measurement simulation service
The noise measurement can be classified as follow. This service supports "arbitrary measurement".

Arbitrary measurement:
Custom-made measurement without the specific standard
Road noise measurement :
"Evaluation manual of environmental criteria on noise II. -Area evaluation (Area facing the road )" April 2000, Compliant with Environment agency
Measurement of construction works noise :
"Guideline of noise measurement in construction work (Plan)" 2007, Copliant with Civil Engineering Research Institute

General type of noise
The manual of evaluation and measurement is prepared for the following noise type, and () showes the name of each forecasting model.
Noise of general environment
Noise of traffic road(ASJ RTN-Model2008)
Noise of conventional rail
Noise of Shinkansen (bullet train)
Noise of airplane
Noise of construction work(ASJ CN-Model2007)
With this service, the noise of traffic road and the construction work are focused.

Measurement equipment
Noise level meter(Sound level meter) : JIS C 1509-1
Calibrator : JIS C 1515
Level recorder : JIS C 1512(scheduled)
Data recorder : No JIS  standard, 20Hz-10kHz is supported(scheduled)
Frequency analyzer : JIS C 1513(scheduled)

Noise level meter NL-42 Sound pressure level when the noise is
 measured at a location for 10minutes

Applicable example of noise analysis and noise measurement
Railway
Noise analysis condition

Number of sound source:1
Sound receiving face:200m×100m×1 face
Number of grid point:41×21×1 face=861 points
Analysis base time:0.01 sec
Actual analysis time:0.45 sec
Noise measurement condition(arbitrary measurement)

Number of measurement point:4 points(on the ground)
Measurement time:1 hour
Factory
Noise analysis condition
Number of sound source:1
Sound receiving face:200m×100m×1 face
Number of grid point:41×21×1 face=861 points
Analysis base time:0.01 sec
Actual analysis time:0.45 sec
Noise measurement condition(arbitrary measurement)
Number of measurement point:2 points(on the ground)
Measurement time:30 min
Commercial facilities
Noise analysis condition
Number of sound source:1
Sound receiving face:200m×100m×1 face
Number of grid point:41×21×1 face=861 points
Analysis base time:0.01 sec
Actual analysis time:0.45 sec
Noise measurement condition(arbitrary measurement)
Number of measurement point:4 points(on the ground)
Measurement time:4 hours
Flying object
Noise analysis condition
Number of sound source:1
Sound receiving face:100m×100m×2 faces
Number of grid point:21×21×2 faces=882 points
Analysis base time:0.01 sec
Actual analysis time:0.45 sec
Noise measurement condition(arbitrary measurement)
Number of measurement point:4 points (on the ground)
Measurement time:12 min
