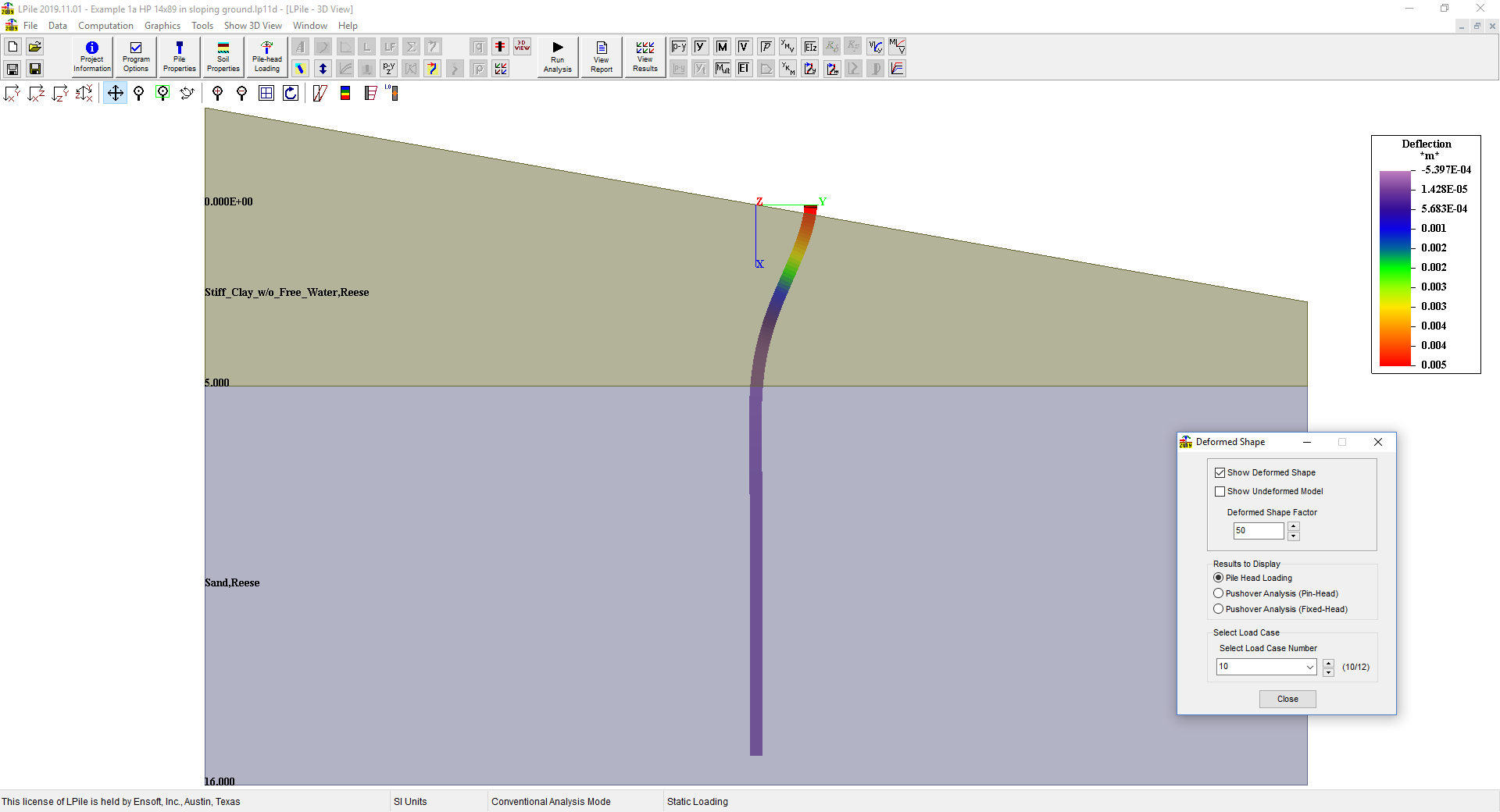

Estimated pile deflection on sloped land

GROUP

Moment distribution diagram of radially arranged piles

*** Related Information ***

* New Product Introduction
"GROUP v7.0" and "LPILE Plus 5.0" (Up&Coming 2008 New Year Special Issue)

Page Top PageTop
GENRERAL DESCRIPTION
ライン
  LPILE 2022

LPILE Plus is a special-purpose program based on rational procedures for analyzing a pile under lateral loading. The program computes deflection, shear, bending moment, and soil response with respect to depth in nonlinear soils. Components of the stiffness matrix at the pile head may be computed internally by the program to help the users in their super-structure analysis.
Several pile lengths may be automatically checked by the program in order to help the user produce a design with an optimum pile penetration. Soil behavior is modeled with p-y curves internally generated by the computer program following published recommendations for various types of soils; alternatively, the user can manually introduce other p-y curves. Special procedures are programmed for developing p-y curves for layered soils and for rocks. Several types of pile-head boundary conditions may be selected, and the properties of the pile can also vary as a function of depth.
LPILE Plus has capabilities to compute the ultimate-moment capacity of a pile's section and can provide design information for rebar arrangement. The user may optionally ask the program to generate and take into account nonlinear values of flexural stiffness (EI) which are generated internally based on specified pile dimensions, material properties, and cracked/ uncracked concrete behavior.


LIST OF FEATURES

  • LIST OF FEATURESFive sets of boundary conditions are available to model the pile head: free head, pinned head with sway, fixed head with sway, or elastically-restrained with a rotational spring. Depending on boundary conditions, pile-head loading may consist of a lateral load, a bending moment, a specific lateral displacement, or a specific pile-head rotation. The ability to specify both deflection and rotation at the pile head is a useful feature available in LPILE Plus.

  • The user may optionally ask the program to generate and take into account nonlinear values of flexural stiffness (EI). These values are generated internally by the program based on cracked/uncracked concrete behavior and user-specified pile dimensions, and material properties. Version 5 allows the user to define multiple sections with nonlinear bending properties. This new feature enables the designer to quickly evaluate the benefits for reducing part of the reinforcing steel in the lower sections of a drilled shaft, as is common used in practice.

  • Up to ten different load cases may be applied at the pile head in a single analytical run. This is a helpful feature for the quick observation of pile behavior subjected to specific increments of lateral loads, bending moments, lateral displacements, or pile-head rotations.

  • A set of distributed lateral loading may be applied anywhere along the length of the pile. Loading may be specified as constant or varying linearly with depth.

  • Four values (Kyy, Kyθ, Kθy, and Kθθ) of a typical 6x6 matrix for foundation stiffness may be generated by the program for a range of loading. Values are helpful as nonlinear foundation models in superstructure analysis.

  • A user-specified curve may be used to model the additional shear resistance provided by the soil at the base of large-diameter drilled shafts and/or short piles.

  • LPILE Plus has the capability to perform push-over analyses and can study the pile behavior after the development of plastic hinges (yielding).

  • Several pile lengths can be automatically checked by the LPILE Plus program in order to help the user produce a design with an optimum pile penetration.

  • Soil-resistance (p-y) curves can be internally generated by the program for the following soils: soft clay, stiff clay with or without free water, sand (Reese et al), sand (API), silt (c-o soils), liquefied sand, strong rock, and weak rock. The p-y curves may be printed at any depth for reviews or reference.

  • Users may optionally input their own soil-resistance (p-y) curves for certain soil depths.

  • A special subroutine effectively incorporates the influence of layered soils.

  • User-defined multipliers are provided to increase or reduce the soil resistance (p-y curves) at any points along the length of the pile. This feature is used in seismic conditions to reduce the response of liquefied layers or to account for Group Effects.

  • Linear interpolation of bending stiffness is computed for piles with varying cross sections.

  • The Graphics menu contains quick observations of results contained in the output file (variations of pile deflection, bending moment, shear and soil resistance with pile depth). The user can customized charts to prepare various engineering plots in high quality for presentation and report.

Page Top PageTop

  GROUP 2022

A Program for the Analysis of Pile in a Group

GROUP has been well accepted as a valuable design tool for analyzing the behavior of pile in a group subjected to both axial and lateral loadings.
The program computes the distribution of loads (combination of vertical, lateral, and overturning moment in up to three orthogonal axes) from the pile cap to piles arranged in a group.
The piles may be installed vertically or on a batter and their heads may be fixed, pinned, or elastically restrained by the pile cap.
The program wil generate internally the nonlinear response of the soil, in the form of t-z and q-q curves for axial loading, in the form of p-y curves for lateral loading.
The p-y, t-z q-w and t-r curves may be generated internally ,emplyoing recommnendations in technical literature, or may be entered manually by the user.
The pile-head forces and movements are introduced into equations that yield the behavior of the pile group in a grobal coordinate system.
The program can internally compute the deflection, bending moment, shear, and soil resistance as a function of depth for each pile.


LIST OF FEATURES
  • Three boundary conditions are available for pile-head connections to the rigid cap: pinned, fixed, or elastically restrained.

  • p-y curves may be input by the user or may be automatically generated by the program and printed for review.

  • This program can provide data for evaluating the pile-cap stiffness, often used by structural engineers for foundation simulation in their numerical models.

  • The graphical observation of output curves features a new interface that allows zooming of areas of particular interest.
    The user may thus observe the detailed behavioral measurements of any portion of the depth of each pile sub-group.

  • The type and number of graphs generated by GROUP 2022 have been increased over previous versions.
    More importantly, the program plots the force and displacement on the pile cap, such as the axial force (tension and compression) of each pile on the pile cap, llateral forces (shear and moment) of each pile on the pile cap, and the displacement of the pile cap in different directions.

  • The program allows for up to 2000 piles in a group, and each pile can have diffrent EI values in orthogonal directions.

  • The program will consider the nonlinear bending stiffness(EI) of each pile during computation. The user can enter nonlinear moment-curvature curves under different axial loads for each pile.
