introduction
line
UC-win/FRAME(3D) is a three dimensional analysis program. It is applied to optional shape space-framed structures. It can perform linear and nonlinear analysis by static and dynamic load. It can also treat geometric nonlinearity. It can collectively perform stress resultant calculation, stress and strength verification by highway bridge specification, and limit state design calculation by Japan Society of Civil Engineers concrete standard specification. Thus it attains both advanced structural analysis and member design function. Its three dimensional model can be exported to 3DS file, and can be used by such programs as UC-win/Road.


Product Background
In recent years, the transition to "performance design" has progressed, and the rationalization of design is gaining more and more momentum. In March 2002 Highway Bridge Specification V Seismic Design Volume, dynamic verification with wide application range is recommended. Forum8 has been providing this product since November 2002. This product is based on optional shape space-framed analysis function. We have been striving for enrichment of three dimensional nonlinear analysis function using fiber element, live load loading function based on influence lines analysis, and design and verification function by highway bridge specification and Japan Society of Civil Engineers concrete standard specification. It is possible not only to dynamically verify bridges with metal bridge piers, reinforced concrete bridge piers, rigid frame piers, and concrete superstructure etc. based on Highway Bridge Specification V, but also to analyze and member design all the frame structures consisting of steel or concrete.
  UC-win/FRAME(3D) Ver.6<Release May 18, 2012>NEW
ライン
<Related Information>

  1. New Road and Bridge Specifications are supported.
  2. It supports for the standard output of the basic load diagram.
  3. The function to output the diagram of reaction force and numerical value of the result as the calculation result of the members to which the distributed spring (joint on the elastic bed) was given.
  4. Response of large-scaled model has been improved.
Page Top Page Top

Program Outline
line


Analysis
  material characteristics - linear/nonlinear
load - static - nodal point-member load, combined-extract(linear)
- dynamic - acceleration surface elevation(basement vibration)
- live load - influence lines analysis(one beam model)
geometric characteristics - infinitesimal displacement / large displacement
calculation method

- dynamic analysis---time-history direct integration method(Newmark β(1/4))
- eigenvalue analysis---subspace iteration method
element - beam element---linear, nonlinear(fiber element, M-phi element)
- spring element---linear, nonlinear(bilinear pattern, tri-linear pattern)
- rigid element---lumped mass, rigid zone
- distributed spring---linear(beam on elastic foundation theory applied)
mass - distributed mass(includes rotation inertia item), lumped mass(translation, rotation)
viscous damping - Rayleigh pattern(initial stiffness, instantaneous stiffness)
- stiffness proportional pattern by element (initial stiffness, instantaneous stiffness)
-Rayleigh damping by element(initial stiffness, instantaneous stiffness)
Section

calculation-verification - stress-strength verification(Highway BridgSpecification 3-4-5), limit state design calculatione


UC-win/FRAME(3D)
features overview list
UC-1
FRAME
(in-plane)
UC-win/FRAME(3D)
Lite Standard Advanced
Plane frame model
In-plane static load (nodal point-member load-prestress load)
Material linear analysis (combination-extraction)[infinitesimal displacement]
Space frame model -
Out-of-plane static load -
Live load (one beam influence line analysis) -
Material nonlinear analysis, geometric nonlinear - -
Dynamic load-eigenvalue analysis-fiber element - -
M-phi element-continuous execution-three waves average-residual displacement verification - - OP1
Addition of hysteresis for fiber element
(Bauschinger effect reinforcing bar, prestressing steel, fiber sheet, etc.)
- - OP2
Verification of stress-strength etc. - OP3 OP3
Animation video recording - - OP4
M-phi & MultiRun option (OP1) \80,000
COM3 & Advanced Hysteresis option Ver.3 (OP2) \100,000
UC-win/Section option (OP3) \100,000
AVI option (OP4) \20,000




Product function list


General analytical fuction
Upper limit of node No limit and OS,depending on hardware
model Flat model / Steric model
Live-load analysis 1 bar model
Static analysis function Combine・Extract
Geometric Nonlinear
Axial force variation element Fiber element
2 axes bending element Fiber element

Dynamic analysis function
Time history analytical method Direct integration method / Newmark-β
Quantity Matrix Distributed mass / Concentrated mass
Damping model (rigidity) Rigidity proportion by element /Rayleigh(beginning・Emomentary)
Arbitrary direction vibration NS、WE、UD

Function related to specifications for highway bridges (specs for HBs)
Correspondence standard Examination for specs HBsIII、IV
Examination for specs HBs V
(3 branches on average, residual displacement , allowable curvature, shear capacity)
Continuous execution
(Average number)
(No limit) Continuous execution with different files
Bearing design X
Interface with other products Pier design / Tremble intensity calculation / UC-BRIDGE

Function related to dynamic non-linear analysis model of bridge
Support bridge style Straight bridge Continuous beam bridge (RC single column bridge pier) Tremble intensity calculation
Continuous beam bridge (Steel single column bridge pier)
PC rigid-frame bridge UC-BRIDGE
RC Arch Bridge / Steel Arch Bridge / Steel Truss Bridge
Curved bridge / Arbitrary
Bridge Column Column Single Column Pier design
Filled concrete metal peer / Rigid-frame / Arbitrary
Section CreationFunction RC / RC reinforcement Pier design
SRC / Filled concrete / Steel / PC / Rectangular / Circular / OvalHollow / Arbitrary
M-φ・θ Assignment / Negative gradient / Linear (yield rigidity) / By-linear Takeda / Tri-linear Takeda / Tri-linear Normal / By-linear Normal (Asymmetry impossible)Tetra-linear Takeda / Tetra-linear JR
Fiber Steel Component:Com3 / by-linear / modified M-PConcrete:Com3 / Sakai-Kawashima / JSCE / Nagoya Expressway FRP / PC Steel Component
Super structure Section Creation Function (PC component possible) UC-BRIDGE
Non-linear
Asymmetry history model (Fiber element / Takeda / Non-linear elasticity / Centromere orientation for origin point / Centromere orientation for origin point maximum point / etc )
Bearing Directionality : Arbitrary
Input style Tremble intensity calculation
Spring characteristic direct / History model(Linear / By-linear / Gap / Others )
Base Arbitrary direction (Asymmetry / Input style / Spring characteristic direct / Non-linear characteristic of ground spring / Frame model for pile foundation

* Plate(shell)element [Linear] / Plate(shell)element[Non-linear] / Solid element [Linear] / Solid element [Non-linear] : Planned to be added in the next product, Engineer's Studio(R)


 Cooperation with Product


Pier design Ver.5

  1. Automatic generation of dynamic verification model at level 2 earthquake for reinforced concrete bridge piers including new, existing, reinforced, and interlocking type bridge piers.
  2. Setup completed on specification of three wave average, allowable curvature-shear capacity verification of bridge pier plastic hinge, and residual displacement verification.
  3. Possible to confirm dynamic verification result immediately after analysis completion by reading the model and pushing the calculation execution button.
  4. Possible to select the type of nonlinear member between fiber element and M-θelement for plastic hinge.
  5. Considers the difference of inertia force application location between lateral axis direction and right angle direction by bearing condition.
Pier design Ver.5 UC-win/FRAME(3D)
UC-1Pier design Ver.5
reinforced concrete lining reinforcement
F3D model automatic
generation of reinforced
concrete bridge pier
Example of interfacing with
shape section



Tremble intensity calculation (pillar support design) Ver.4

  1. Automatic generation of dynamic verification model at level 2 earthquake for reinforced concrete bridge piers including new, existing, reinforced, and interlocking type bridge piers.
  2. Setup completed on specification of three wave average, allowable curvature-shear capacity verification of bridge pier plastic hinge, and residual displacement verification.
  3. Possible to confirm dynamic verification result immediately after analysis completion by reading the model and pushing the calculation execution button.
  4. Possible to select the type of nonlinear member between fiber element and M-θelement for plastic hinge.
  5. Considers the difference of inertia force application location between lateral axis direction and right angle direction by bearing condition.
Tremble intensity calculation
(pillar support design) Ver.4
UC-win/FRAME(3D)
Tremble intensity calculation
(pillar support design) Ver.4
Model automatically generated
from seismic intensity calculation
Display of dynamic verification result



UC-BRIDGE Ver.7

  1. For superstructures and substructures, dynamic analysis models in gross structural system consisting of PC steel products and placement information of reinforcing steel can be created.
  2. Possible to create dynamic analysis models for structural system in the construction process.
  3. Possible to set up damping constant for all the members (linear and non-linear), as well as various alternatives and parameters in tabular form.
  4. Offers several options for drawing axis of variable cross section beams for superstructures.
  5. Offers load options which convert and superimpose additional dead load and bridge face load.
UC-BRIDGE Ver.7 UC-win/FRAME(3D)
UC-1 UC-BRIDGE Ver.7 Model is automatically created
from UC-1 UC-BRIDGE Ver.7
Beam of variable cross section
can be displayed.






Steel Pier

Pile Foundations
(in principle, applied to static analysis)

Bridge with a Horizontally Load Distributing
Structure Upon Earthquake/ Quake-Absorbing Bridge

Rigid-Frame Bridge

Verification result (allowable stress)



Damage judgment by response strain



Stress resultant figure (bending moment, axial force)




Page Top Page Top
Ver.4.00.00 newly added functions (Released on January 2010) New!
line

<Related Page> UC-win/FRAME(3D) Ver.4 (Up and Coming 2010 New Year Special Issue)

  1. Setting initial section force to members
  2. Eigen value analysis in consideration of geometric rigidity
  3. Spread sheet style data entry of joint mass
  4. Vertical and horizontal division option was added to meshing methods of fiber element section
  5. Automatic generation of 3D model views from 6 directions
  6. Changing maginification option for large displacement analysis was added
  7. Improved memory usage at the time of data output and reporting large scale fiber models


Ver.3.00.00 main additional functions (Released on March 10, 2008)
line

<Related Page> UC-win/FRAME(3D) Ver.3 (UP&Coming 2008 Early Spring issue)


Newly revised Main feature
  1. Improved the calculation speed of caeigenvalue analysis and Improved the arithmetic processing speed of analysis main division
  2. Expansion of section steel database

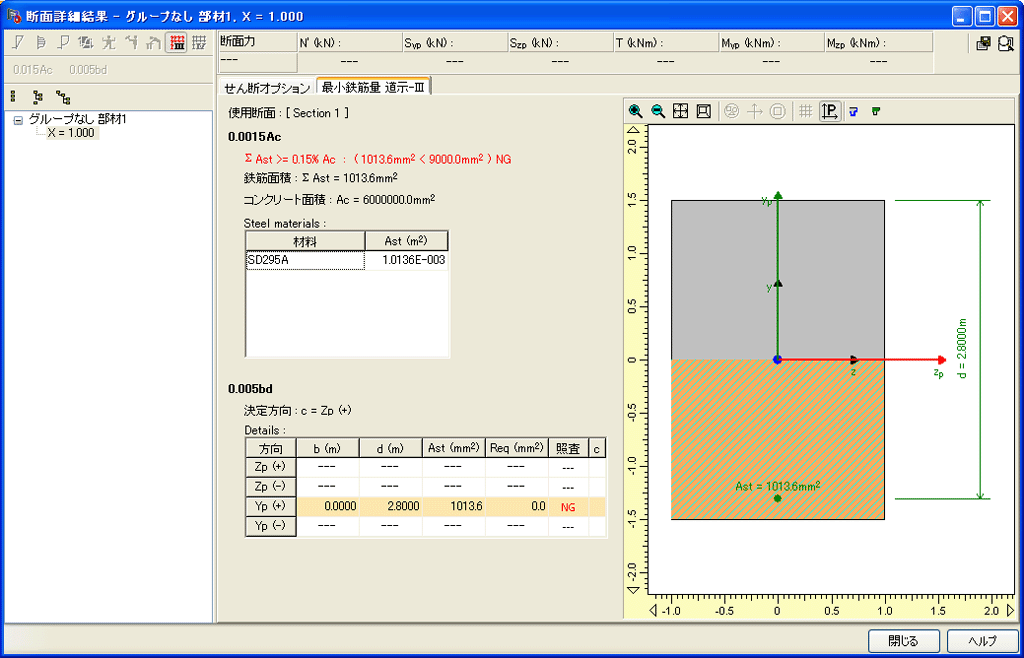

  3. Addition of examination the minimum amont of steel reinforcement


  4. Rayleigh damping by element
  5. Addition of allowable stress of reinforcing steel
  6. Improved effective depth in shear and shear reinforcement
  7. Improved the convergent calculation of biaxial bending unit stress
  8. Analysis control of the model, which is difficult to converge

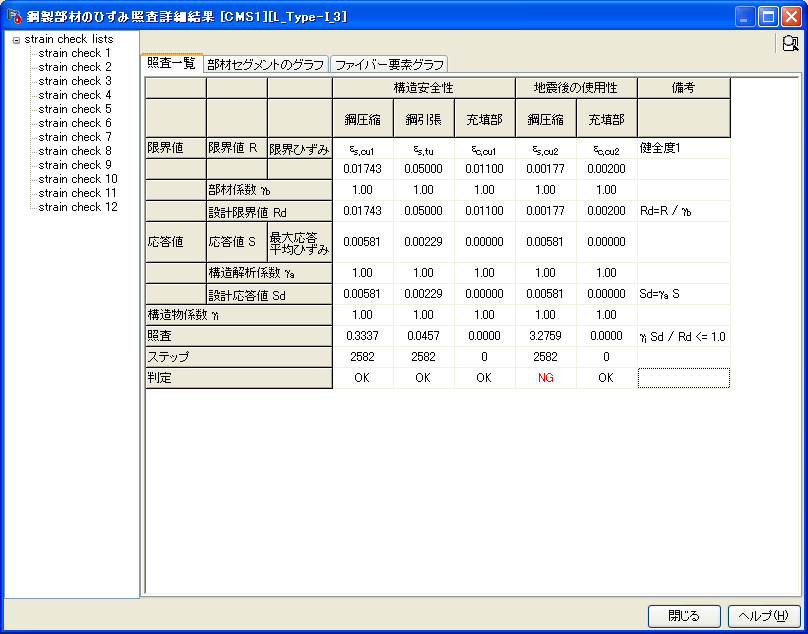

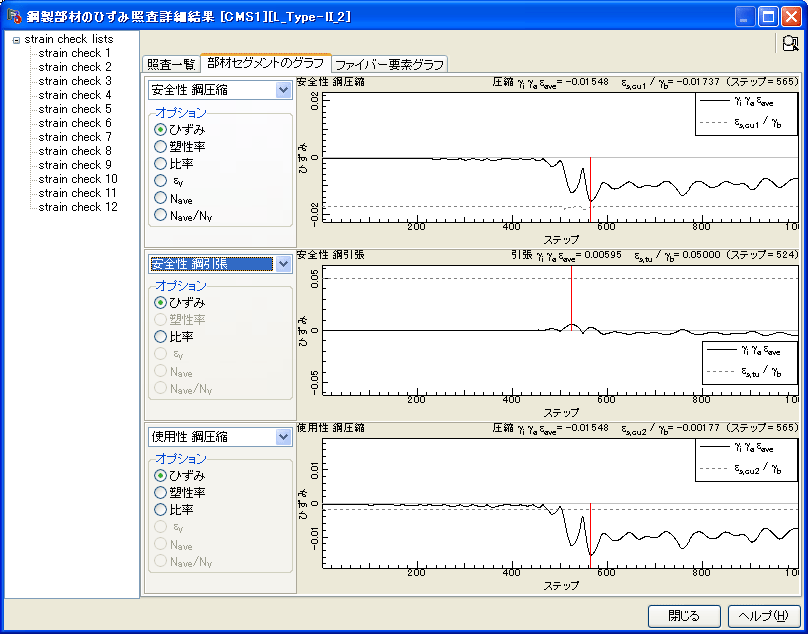

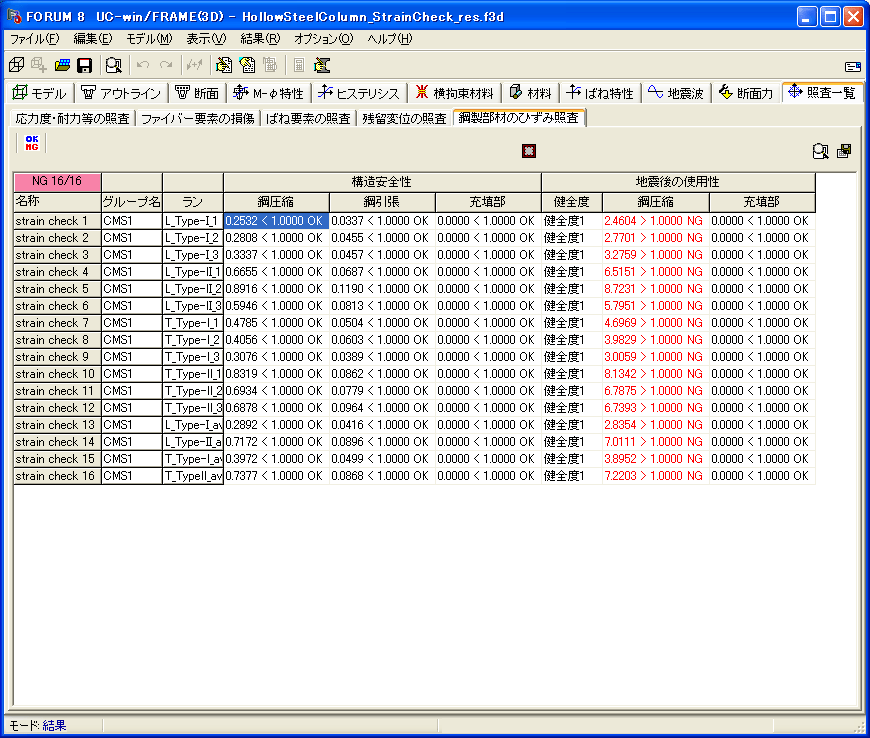

  9. Enhanced deforcement examination of steel member



  10. Expansion of steel hysteresis


  11. Additiion of linear interpolation of a seismic wave

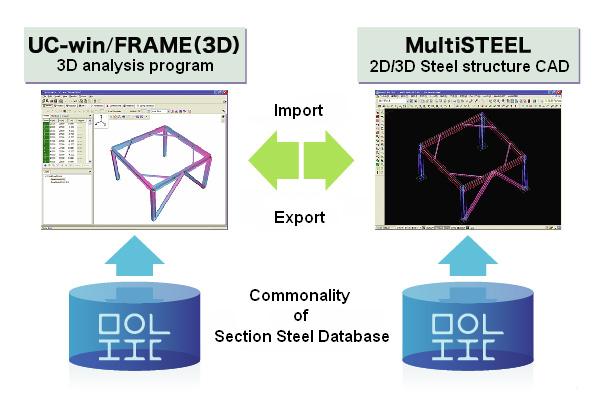

  12. Enable to link with SDNF format

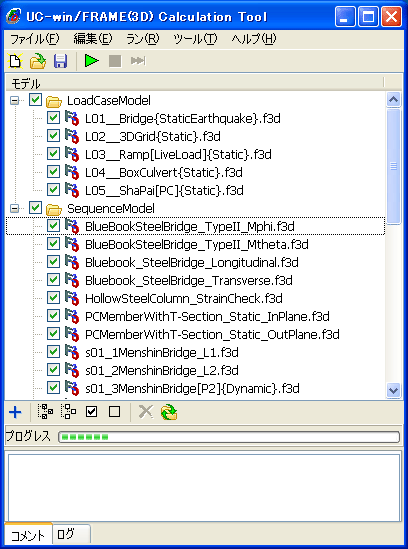

  13. Caluculation tool, which can execute multiple files simultaneously

  14. Supported for Windows Vista


Ver.2.00.00 Revisions (Released on July 28, 2006)
line


Major New Features in this Version
  1. Addition of a feature to input nodal load, member load in tabular format
  2. Addition of "Sakai-Kawashima" model to concrete hysteresis.

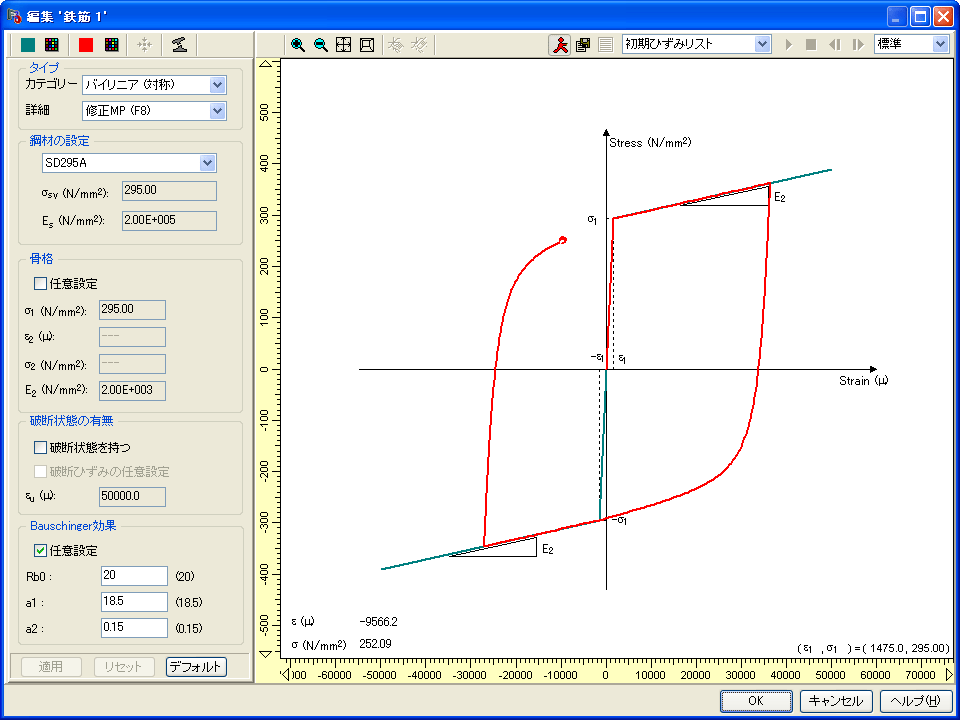

  3. Addition of "Modified MP (Sakai-Kawashima)" to reinforcement hysteresis, steel plate hysteresis, PC steel hysteresis
  4. Addition of "JSCE" type to concrete hysteresis
  5. Addition of "Mander" model to concrete hysteresis


Major Revision Features
  1. Addition of distance input from j edge to member distributed node
  2. Addition of eccentric load which loads at a location apart from skeleton line
  3. Addition of axial force automatic calculation feature of spring element with section in M-θ model
  4. ddition of residual displacement check feature of spring element with section in M-θ model
  5. Addition of "shock absorber" model to spring quality
  6. Addition of "linear" type to M-phi quality

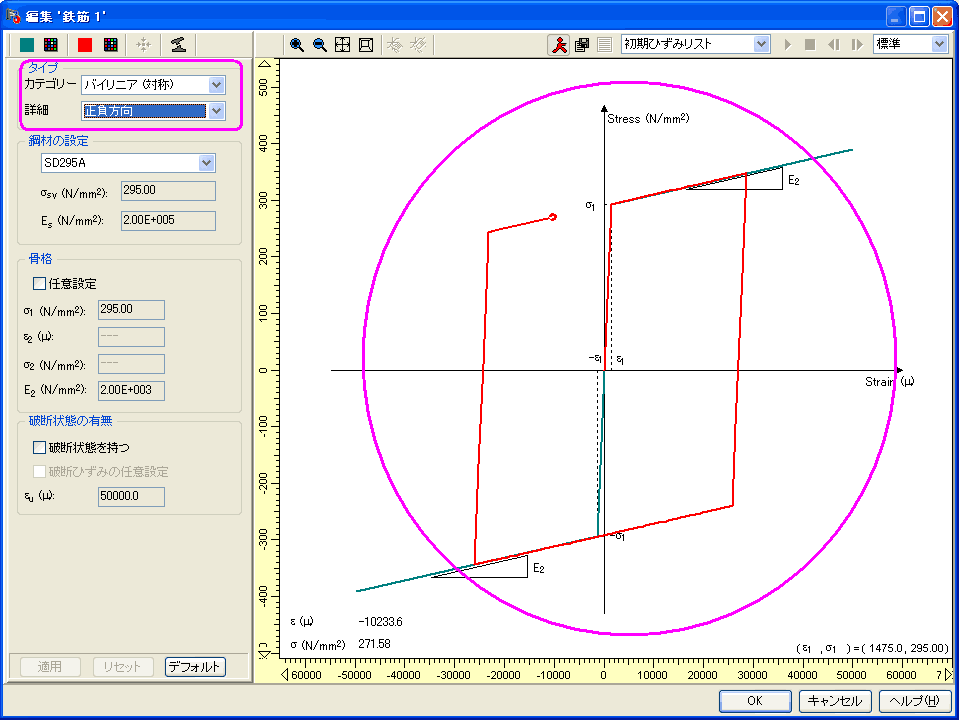

  7. Addition of "bilinear symmetry" and "trilinear symmetry" to steel plate hysteresis
  8. Addition of 16MPa, 18MPa to concrete material data base
  9. Addition of Nagoya Expressway Public Corporation October 2003 edition to bearing data base of spring quality "Nagoya Expressway rubber bearing form"
  10. Addition of time history graph etc. to result screen of spring element. The results of plural runs can be displayed individually or collectively.



Addition of a feature to input nodal load, member load in tabular format
Tabular format input screen of nodal load, member load



Addition of "shock absorber" model to spring quality

Spring quality of shock absorber



New addition of concrete hysteresis
Unloading-reloading hysteresis model of laterally restrained concrete




JSCE model
(2002 concrete standard specifications[seismic performance check volume] model)



Addition of axial force automatic calculation feature of spring element with section in M-θ model
Axial force automatic calculation setting of spring element (M-θ model)

Time-history graph output of spring element result
Time-history graph of spring element


Page Top Page Top

Program Characteristics
line
Analysis
 1. Material linearity :

You can perform extraction by maximum-minimum stress resultant from result combination. (static-infinitesimal displacement time) You can apply static load, dynamic load, or live load.
 2. Material nonlinearity :

You can perform material nonlinear analysis of frame structures correctly in three dimensions by fiber element. You can consider geometric nonlinearity and material nonlinearity simultaneously, and can correctly perform nonlinear analysis of members receiving biaxial bending such as eccentric bridge piers and bridge piers of curved-in-plan bridges. Analysis by M-phi element is possible, which shows nonlinearity of bending only. Static load and dynamic load can be applied.
 3. Geometric nonlinearity :

Geometric nonlinearity is given a strict consideration based on formularization by Dr. Shigeo Gotoh (professor emeritus of Saga University). Difference in compression-tension characteristics of cables and P-effect of eccentric bridge piers are expressed. Geometric stiffness is updated successively.

Load
 1. Static load :

It is possible to handle nodal point load, member load(distribution-humidity-concentration), and prestress load(arrange prestressing steel and apply direct effective stress), and dead load can be automatically generated. It is also possible to perform a variety of structural experiment simulations and load displacement relation assessments by nonlinear analysis(sequence) using incremental load by loading pattern used in positive and negative alternating experiments of columns.
 2. Dynamic load :

Acceleration wave profiles provided by Disaster Prevention Science and Technology Research Institute(K-NET-KiK-NET) and by Japan Meteorological Association (JMA) can be read intact into other text files. Simultaneous vibration in 3 directions(2 horizontal + vertical), input angle change, and continuous execution of multiple seismic waves are also possible.
 3. Live load :

Performs stress resultant aggregation by live load loading based on influence lines analysis of one beam model. Corresponds to T-L load and traveling load, and can perform extraction by comparison of each stress resultant and by maximum-minimum stress resultant. Multiple loading regions(such as separately loading upper and lower lines) can be considered.

Nonlinear model
 1. Fiber element :

Hysteresis(material nonlinear history model) can be applied to concrete, reinforcing bar, plate and sheet, carbon-aramid fiber, and prestressing steel. Breaking consideration, and buckling consideration after plasticity for reinforcing bar-plate and sheet are possible. It is an element that can correctly consider axial force fluctuation and biaxial bending.
 2. M-phi element :

Can handle: tri-linear form(Takeda, normal, origin direction, elasticity), bilinear form(Takeda, normal), tetra-linear form(Takeda, railway seismic reinforced concrete member). Can also handle positive negative asymmetry and negative gradient(partially not applicable). Applies to two dimensional analysis under fixed axial force.
 3. Spring element :

Can handle: tri-linear form(Takeda, normal, origin direction, elasticity), bilinear form(Takeda, normal, one-sided, Gap/Hook, Clough/slip), tetra-linear form(Takeda, railway seismic reinforced concrete member), rubber bearing model of Nagoya Expressway Bureau. Can also handle positive negative asymmetry and negative gradient(partially not applicable). Not only displays plastic hinge, but also deals with modeling of collision by girder or movement restriction, and of device for prevention of falling off from bridges.

Input-Result Display-Output
 1. Input :

Can easily make frame model by nodal point coordinate-element direct input (table input) and by model generator. Can combine models of different files and can repeat arrangements by copying & pasting (merge function). Any shape of sections and reinforcing bar arrangements can be generated by simple generation function using wizards and by detail generation function using outlines (shape).
 2. Result display-output :

Stress resultant figures, deformation figures, support reactions figures, natural mode figures, time-history wave profiles, and M-phi hysteresis can be confirmed. For fiber elements, damages can be judged by the size of response strain. It is equipped with F8 output editing tool, and can reports with table of contents and MS-WORD form output.

Section Calculation-Verification
Corresponds to stress-strength verification by Highway Bridge Specification 3-4-5, and to verification by limit state design calculation (concrete standard specification, railway standard concrete structure). Stress calculation-flexural capacity calculation at the time of biaxial bending is also possible.
 1. Linear analysis :

Verification results of all the focus points that are set up can be confirmed at a glance for all the basic load cases and combined load cases. For each load case, either stress verification method or strength verification method can be used. For example, verifications at normal times and at the time of an earthquake can be executed using a single model. In addition to extracting by stress resultant, strict status for allowable stress and strength can be extracted. Examples of applicable structures
 2. Nonlinear analysis :

Stress, strength, and allowable curvature for beam members can be verified. Also, allowable displacement (translation and rotation) and residual displacement for spring element can be verified. It also corresponds to verification by response figure for the average of three waves, and can perform dynamic verification based on Highway Bridge Specification V. Different performance can be assumed for each member. For example, different allowable curvatures can be set for the members to be made plastic and the members not to be made plastic.


Fig-1
   Stress-strain curve in accordance with highway bridge
   specifications

Fig-2



Fig-3

Fig-4


Fig-5
Damage judgment by response strain

Fig-6
   Extracting maximum/minimum sectional load cases
Page Top Page Top
Product environment
line
  Product operation environment (required system)

 [ Operating System ] - Microsoft Windows 2000, XP or any later versions
 [ Computer ] - PC/AT or compatible system


Essential system specification Recommended system specification
CPU Intel Pentium/Celeron (800MHz or greater) Intel Pentium/Celeron (2GHz or greater)
Memory 512MB of RAM or greater 1024MB of RAM or greater
Hard disk 700MB or greater Approx. 700MB or greater
Graphic card OpenGL compatible with 64MB or greater graphic memory. Open GL compatible with 128MB or greater graphic memory.
Display 1024 x 768 or greater graphic resolution 32bit colors 1280 x 1024 or greater
graphic resolution 32bit colors
Others CD-ROM drive DVD-ROM drive


Hardware Specifications
Page Top Page Top

FORUM8
